ImFont Struct Reference

#include <imgui.h>

Collaboration diagram for ImFont:

Public Types
typedef ImFontGlyph	Glyph

Public Member Functions
	ImFont ()
	~ImFont ()
void	ClearOutputData ()
void	BuildLookupTable ()
const ImFontGlyph *	FindGlyph (ImWchar c) const
const ImFontGlyph *	FindGlyphNoFallback (ImWchar c) const
void	SetFallbackChar (ImWchar c)
float	GetCharAdvance (ImWchar c) const
bool	IsLoaded () const
const char *	GetDebugName () const
ImVec2	CalcTextSizeA (float size, float max_width, float wrap_width, const char *text_begin, const char *text_end=NULL, const char **remaining=NULL) const
const char *	CalcWordWrapPositionA (float scale, const char *text, const char *text_end, float wrap_width) const
void	RenderChar (ImDrawList *draw_list, float size, ImVec2 pos, ImU32 col, unsigned short c) const
void	RenderText (ImDrawList *draw_list, float size, ImVec2 pos, ImU32 col, const ImVec4 &clip_rect, const char *text_begin, const char *text_end, float wrap_width=0.0f, bool cpu_fine_clip=false) const
void	GrowIndex (int new_size)
void	AddGlyph (ImWchar c, float x0, float y0, float x1, float y1, float u0, float v0, float u1, float v1, float advance_x)
void	AddRemapChar (ImWchar dst, ImWchar src, bool overwrite_dst=true)

Data Fields
float	FontSize
float	Scale
ImVec2	DisplayOffset
ImVector< ImFontGlyph >	Glyphs
ImVector< float >	IndexAdvanceX
ImVector< unsigned short >	IndexLookup
const ImFontGlyph *	FallbackGlyph
float	FallbackAdvanceX
ImWchar	FallbackChar
short	ConfigDataCount
ImFontConfig *	ConfigData
ImFontAtlas *	ContainerAtlas
float	Ascent
float	Descent
bool	DirtyLookupTables
int	MetricsTotalSurface

Member Typedef Documentation

typedef ImFontGlyph ImFont::Glyph

Constructor & Destructor Documentation

ImFont::ImFont

(

)

ImFont::~ImFont

(

)

Member Function Documentation

void ImFont::AddGlyph	(	ImWchar	c,
		float	x0,
		float	y0,
		float	x1,
		float	y1,
		float	u0,
		float	v0,
		float	u1,
		float	v1,
		float	advance_x
	)

Here is the call graph for this function:

Here is the caller graph for this function:

void ImFont::AddRemapChar	(	ImWchar	dst,
		ImWchar	src,
		bool	overwrite_dst = true
	)

void ImFont::BuildLookupTable

(

)

Here is the call graph for this function:

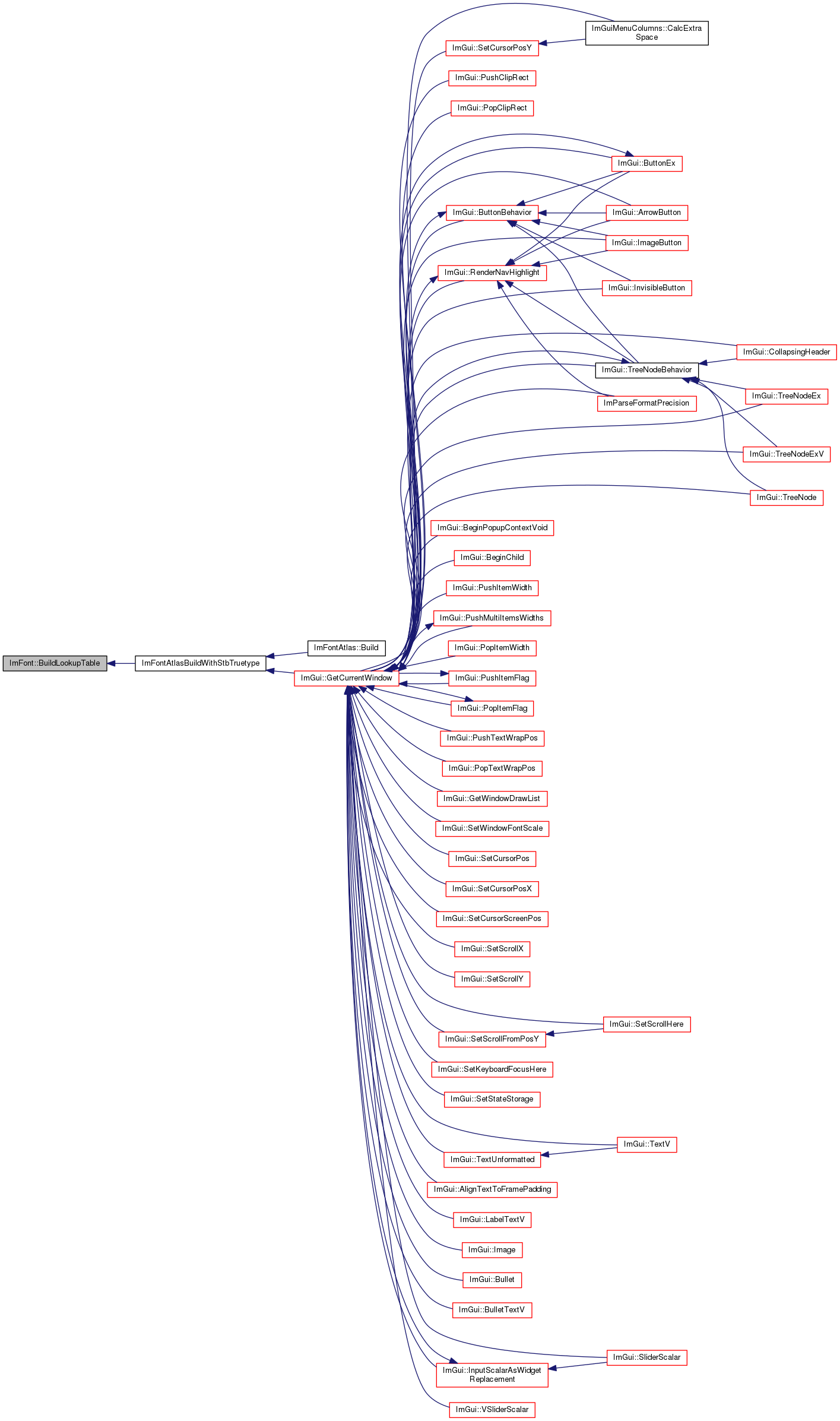

Here is the caller graph for this function:

ImVec2 ImFont::CalcTextSizeA	(	float	size,
		float	max_width,
		float	wrap_width,
		const char *	text_begin,
		const char *	text_end = NULL,
		const char **	remaining = NULL
	)		const

Here is the call graph for this function:

Here is the caller graph for this function:

const char * ImFont::CalcWordWrapPositionA	(	float	scale,
		const char *	text,
		const char *	text_end,
		float	wrap_width
	)		const

Here is the call graph for this function:

void ImFont::ClearOutputData

(

)

Here is the caller graph for this function:

const ImFontGlyph * ImFont::FindGlyph

(

ImWchar

c

)

const

Here is the caller graph for this function:

const ImFontGlyph * ImFont::FindGlyphNoFallback

(

ImWchar

c

)

const

Here is the caller graph for this function:

float ImFont::GetCharAdvance ( ImWchar  c ) const

inline

Here is the call graph for this function:

Here is the caller graph for this function:

const char* ImFont::GetDebugName ( ) const

inline

Here is the call graph for this function:

Here is the caller graph for this function:

void ImFont::GrowIndex

(

int

new_size

)

bool ImFont::IsLoaded ( ) const

inline

Here is the caller graph for this function:

void ImFont::RenderChar	(	ImDrawList *	draw_list,
		float	size,
		ImVec2	pos,
		ImU32	col,
		unsigned short	c
	)		const

Here is the call graph for this function:

Here is the caller graph for this function:

void ImFont::RenderText	(	ImDrawList *	draw_list,
		float	size,
		ImVec2	pos,
		ImU32	col,
		const ImVec4 &	clip_rect,
		const char *	text_begin,
		const char *	text_end,
		float	wrap_width = 0.0f,
		bool	cpu_fine_clip = false
	)		const

Here is the call graph for this function:

Here is the caller graph for this function:

void ImFont::SetFallbackChar

(

ImWchar

c

)

Field Documentation

float ImFont::Ascent

ImFontConfig* ImFont::ConfigData

short ImFont::ConfigDataCount

ImFontAtlas* ImFont::ContainerAtlas

float ImFont::Descent

bool ImFont::DirtyLookupTables

ImVec2 ImFont::DisplayOffset

float ImFont::FallbackAdvanceX

ImWchar ImFont::FallbackChar

const ImFontGlyph* ImFont::FallbackGlyph

float ImFont::FontSize

ImVector<ImFontGlyph> ImFont::Glyphs

ImVector<float> ImFont::IndexAdvanceX

ImVector<unsigned short> ImFont::IndexLookup

int ImFont::MetricsTotalSurface

float ImFont::Scale

---

The documentation for this struct was generated from the following files:

• editor/src/third_party/imgui.h
• editor/src/third_party/imgui_draw.cpp
